John Maloney's Pantera Rear Deck Lid Strut Study
From a club presentation in June 2015
(click on pages to enlarge)
Page 1)
![](RearDeckStrutStudy_image01.jpg)

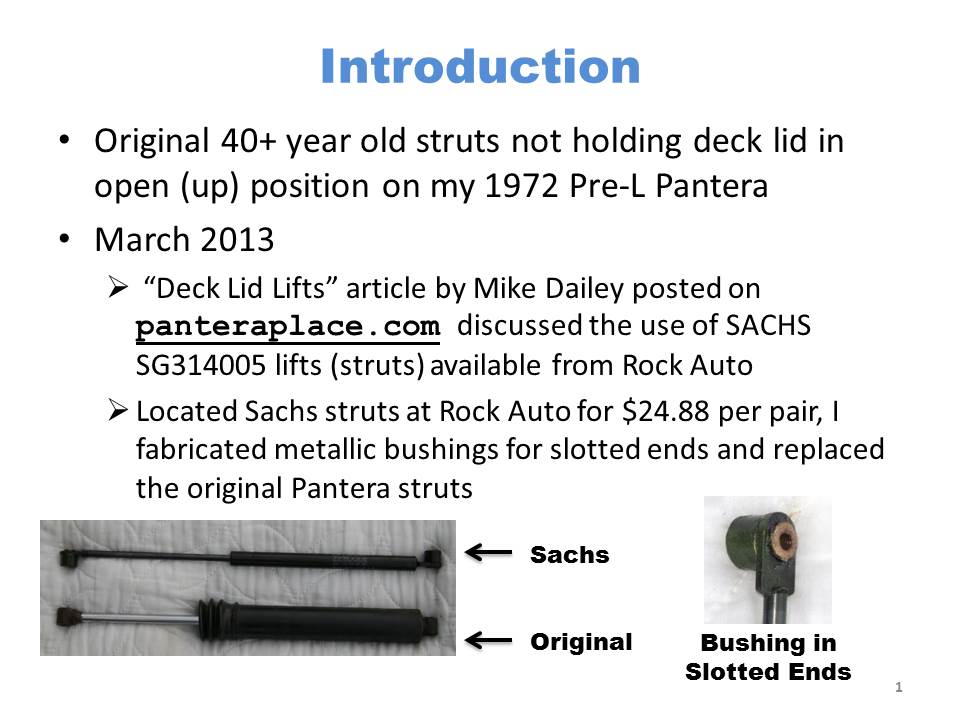

Page 2)
![](RearDeckStrutStudy_image02.jpg)

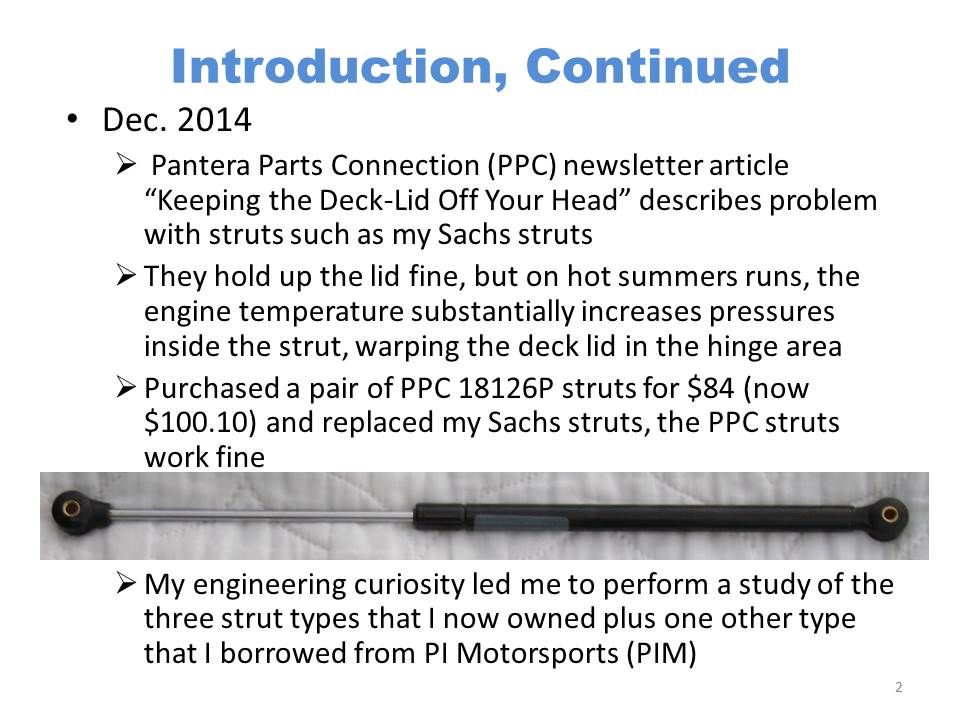

Page 3)
![](RearDeckStrutStudy_image03.jpg)

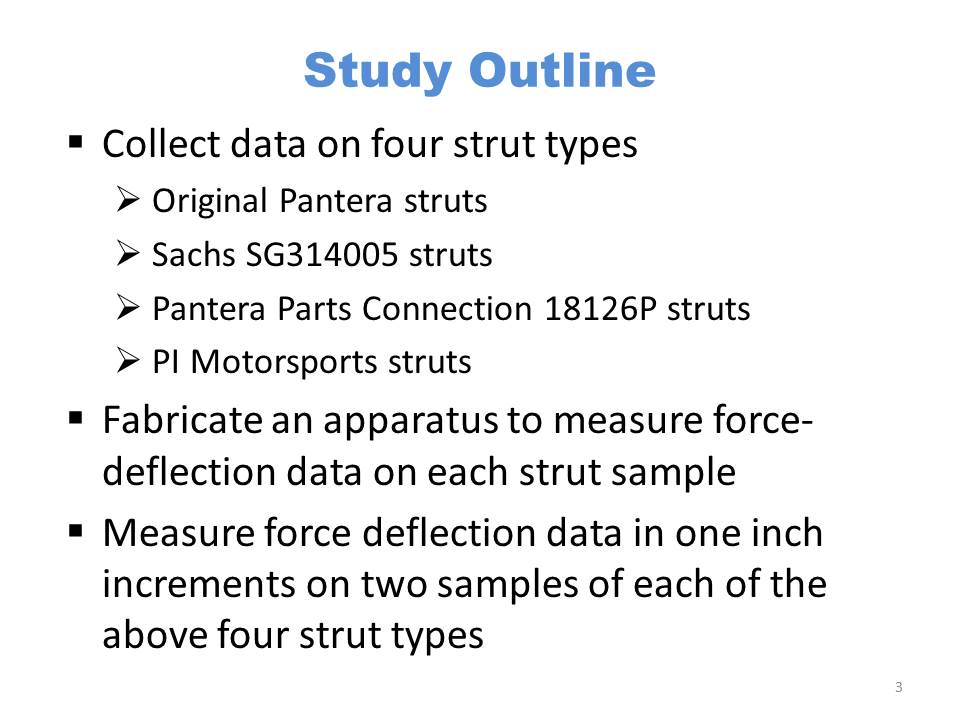

Page 4)
![](RearDeckStrutStudy_image04.jpg)

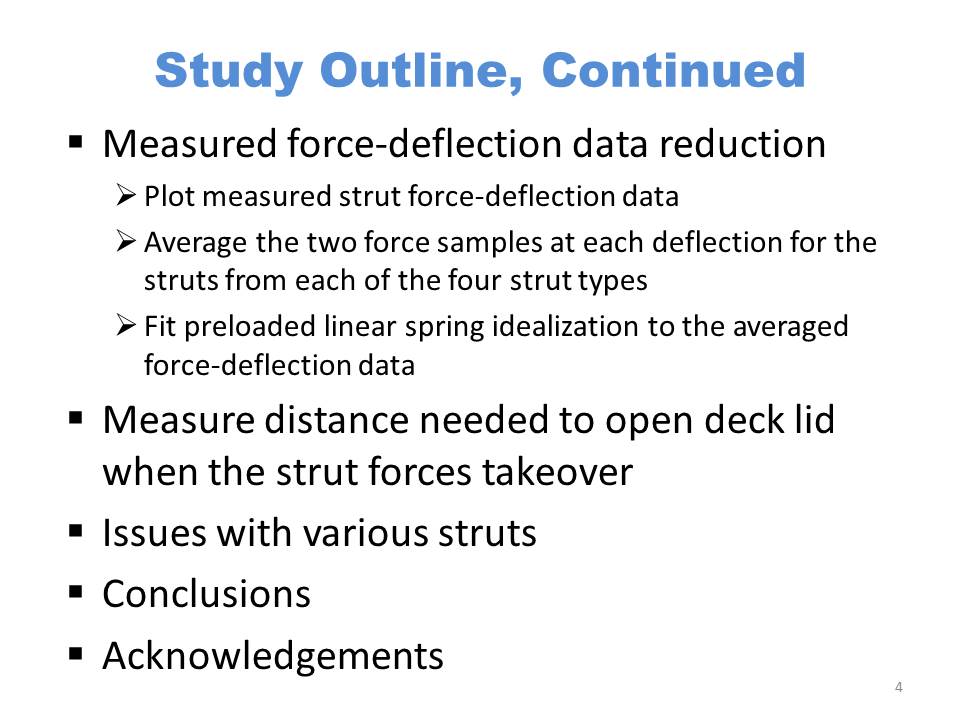

Page 5)
![](RearDeckStrutStudy_image05.jpg)

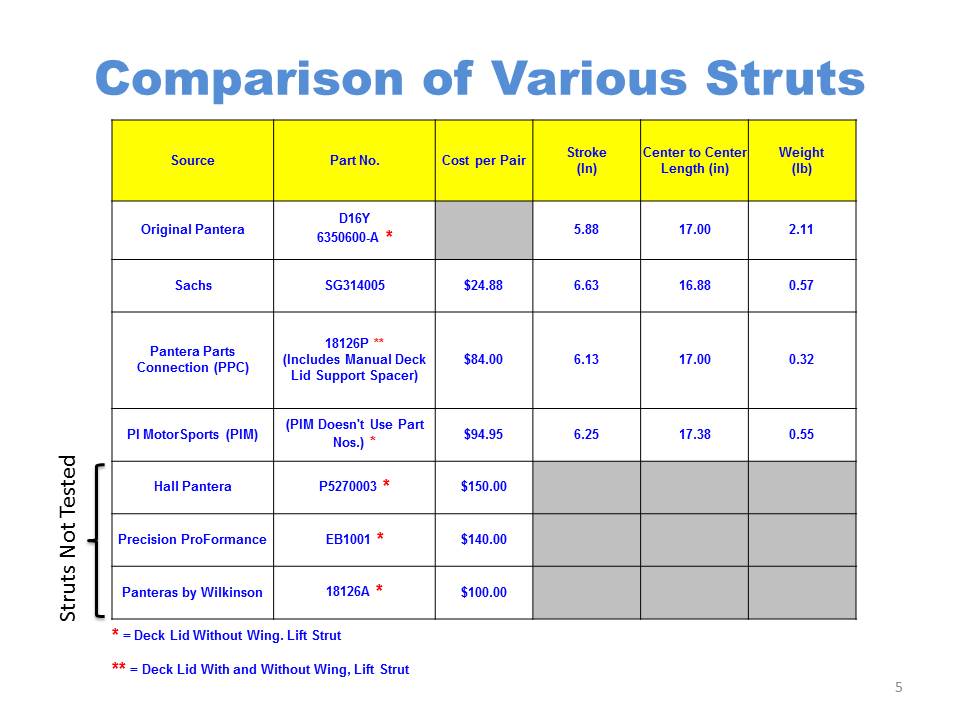

Page 6)
![](RearDeckStrutStudy_image06.jpg)
Page 7)
![](RearDeckStrutStudy_image07.jpg)

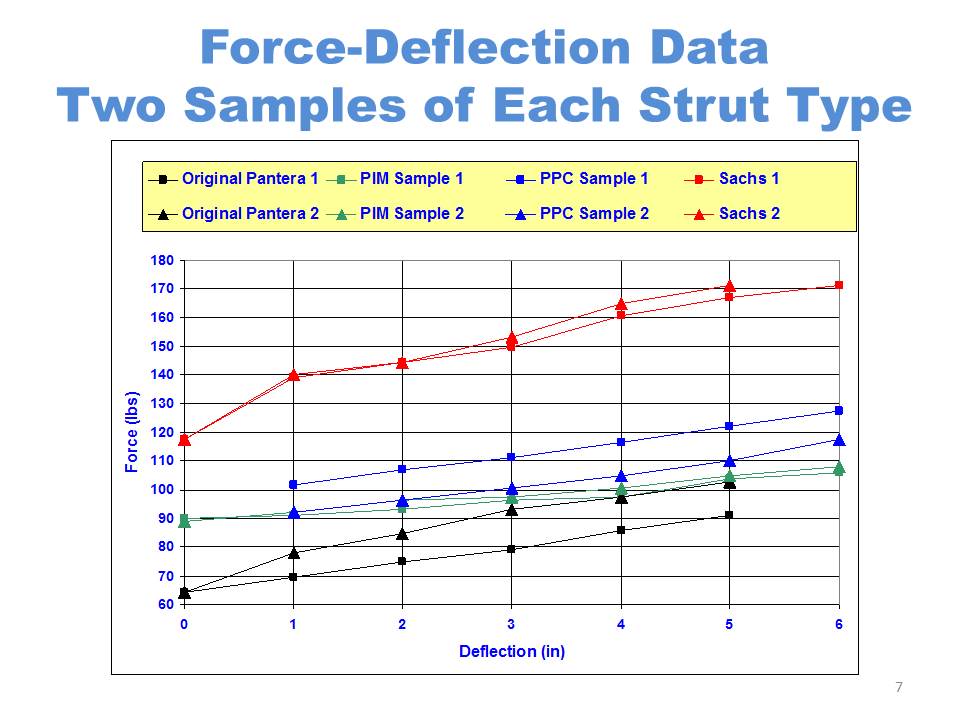

Page 8)
![](RearDeckStrutStudy_image08.jpg)

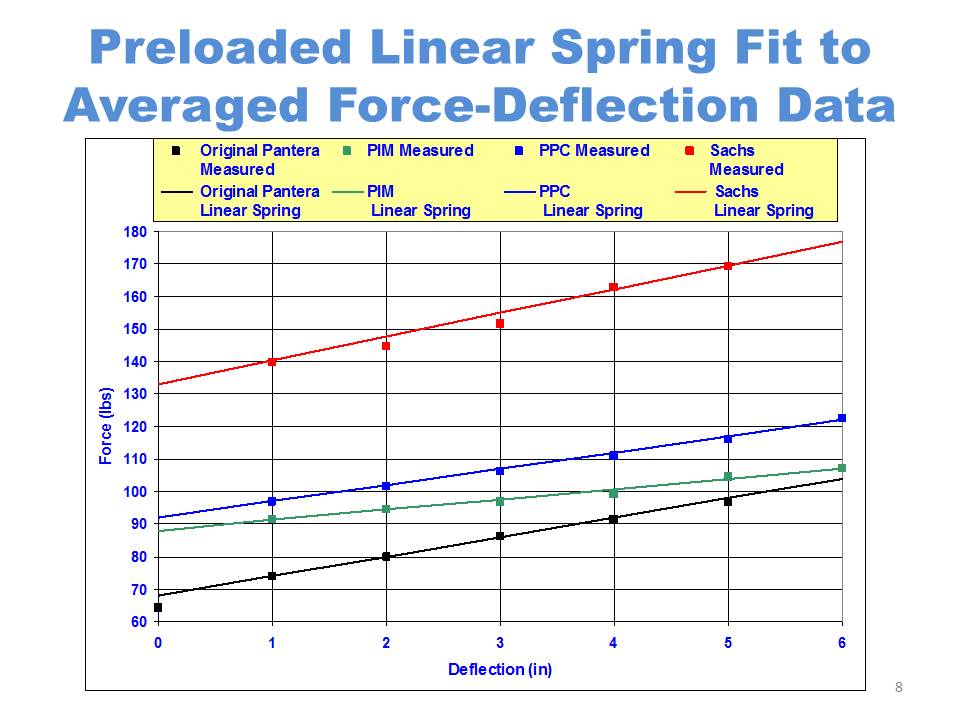

Page 9)
![](RearDeckStrutStudy_image09.jpg)

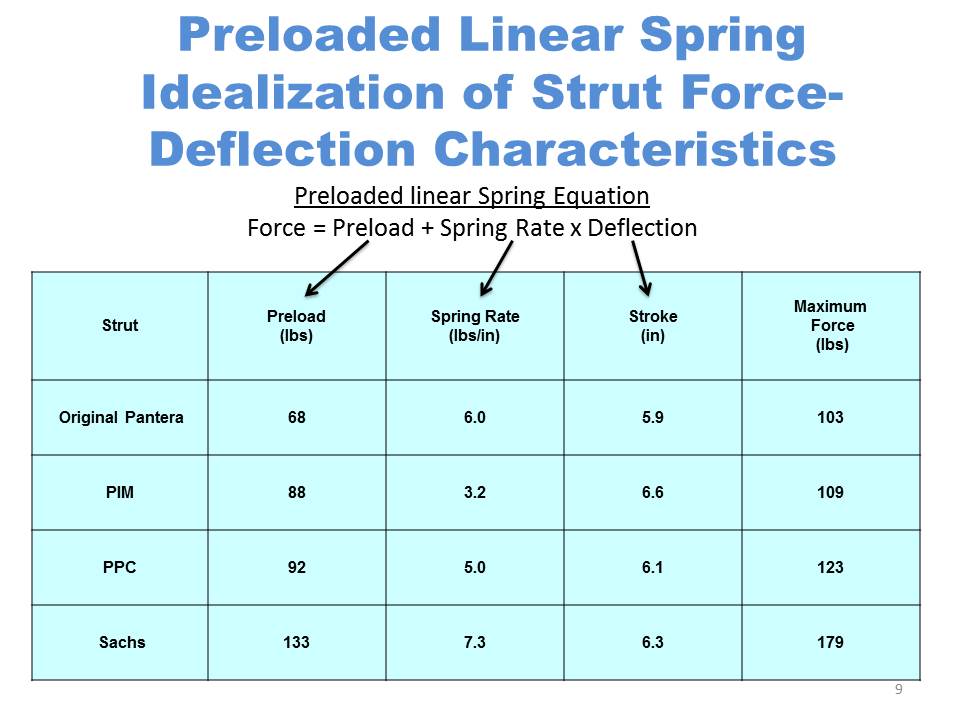

Page 10)
![](RearDeckStrutStudy_image10.jpg)

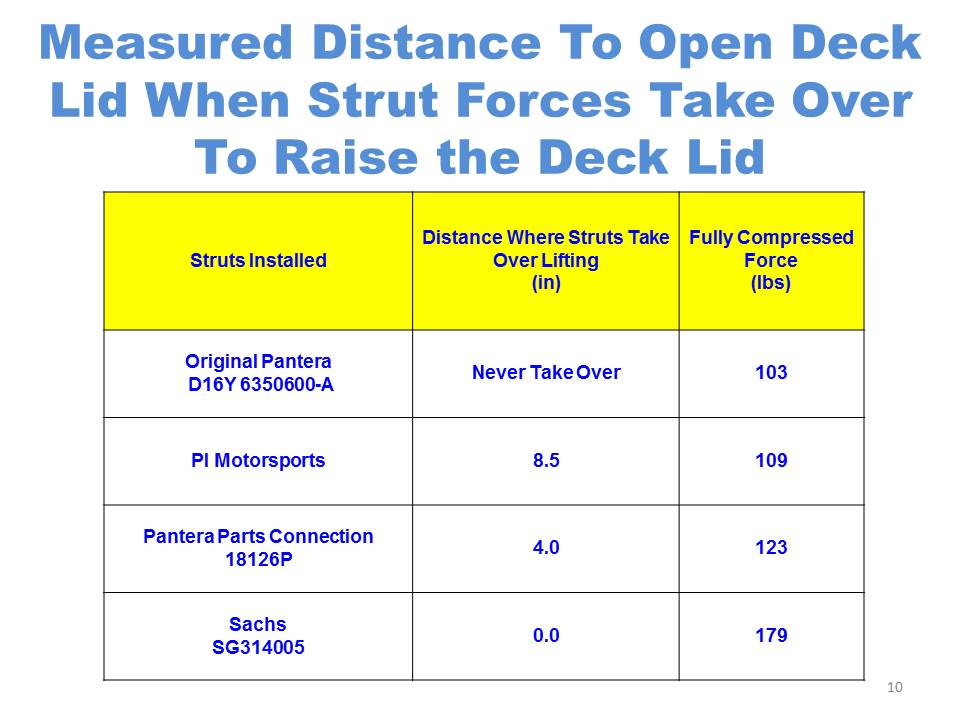

Page 11)
![](RearDeckStrutStudy_image11.jpg)

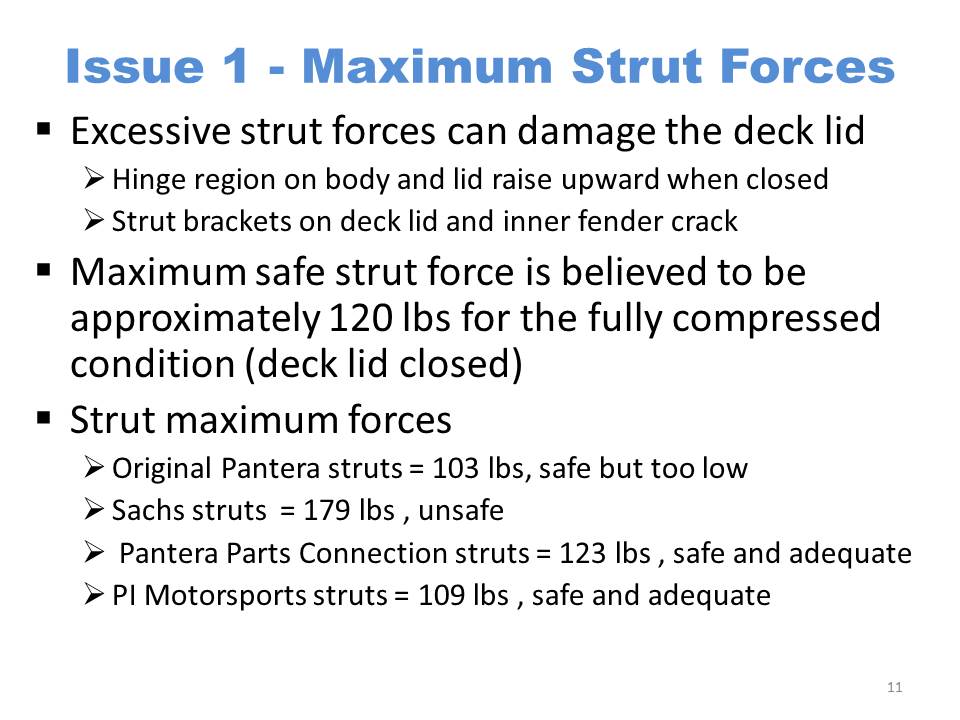

Page 12)
![](RearDeckStrutStudy_image12.jpg)

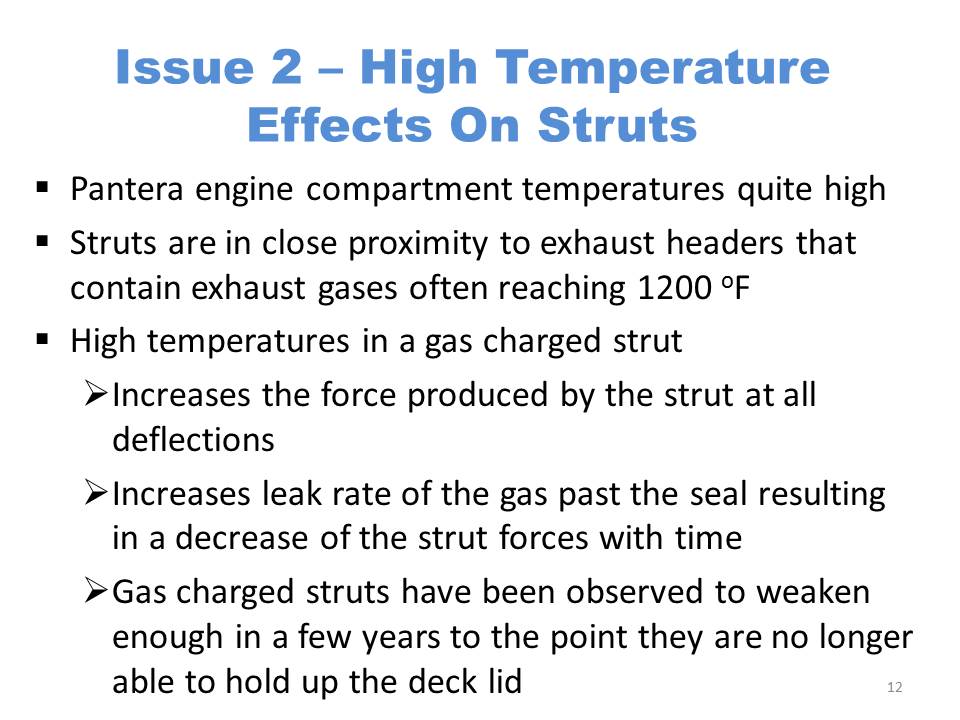

Page 13)
![](RearDeckStrutStudy_image13.jpg)
Page 14)
![](RearDeckStrutStudy_image14.jpg)

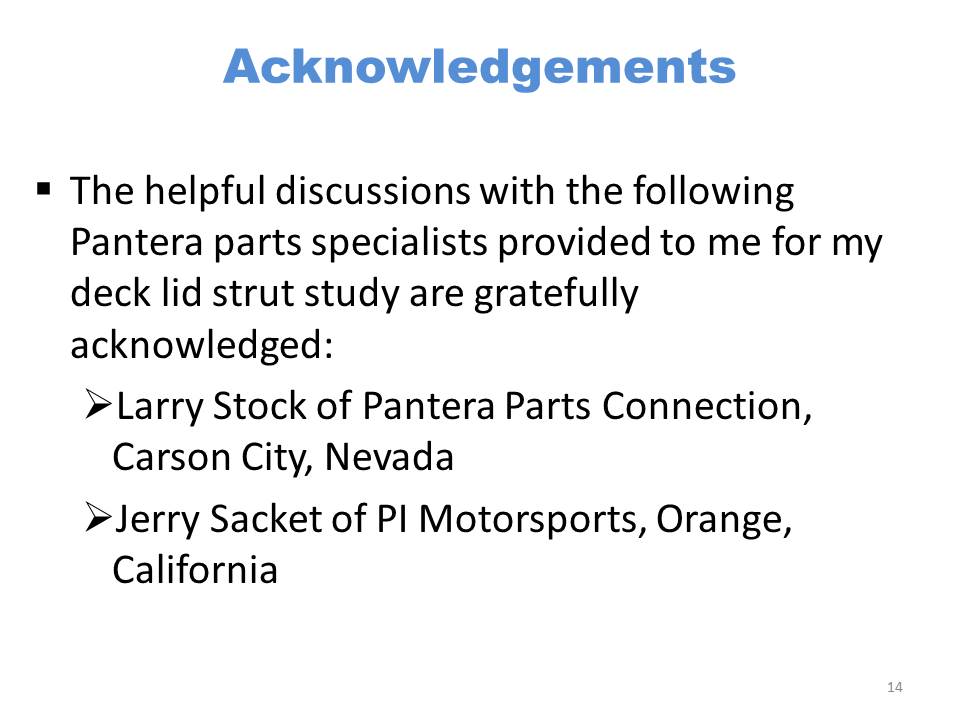

Page 15)
![](RearDeckStrutStudy_image15.jpg)
John Maloney
June 2015
|
